ICN-08
.jpg)
.jpg)
This series enables low pressure drop of flow and can be adjusted precisely to be closed completely in free flow. There's no reverse flow.
The flow from port 1 to port 2 can be adjusted and closed in reverse flow.
Rated Flow :
20 l/min
Max. pressure :
350 bar
Opening pressure from port 1 to port 2 :
(1) 0.5 bar (2) 5 bar
Leakage :
0.3 ml/min (5 dpm)
Working temperature :
Min. -20℃ , Max. 90℃ , with standard BUNAN gaskets
Min. -20℃ , Max. 120℃ , with optional VITON gaskets on request
Fluid :
best use mineral oil with viscosity ranging between 10 and 200 cSt
Filter :
25 micron or better

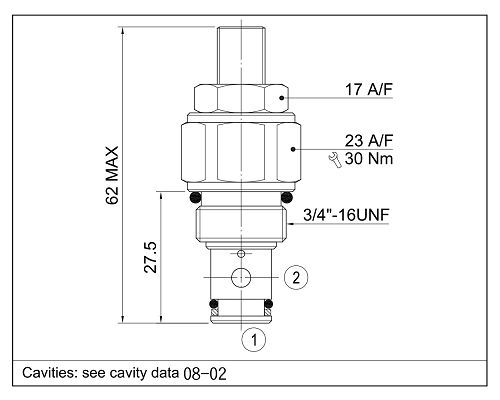

Cavities :
see cavity data 08-02
Installation :
before screwing the cartridge on the valve body, ascertain to provide suitable gasket lubrication with clean oil and also be sure to screw the cartridge manually in to reach against the gaskets in the valve body.
